ASI 11004 26 to 12 AWG IMDS25M DIN Rail Mount Interface Module, Cable to Wire Transition, 25 Position Male D-Sub Connector to Screw Clamp Terminal Blocks, 2.99" Length

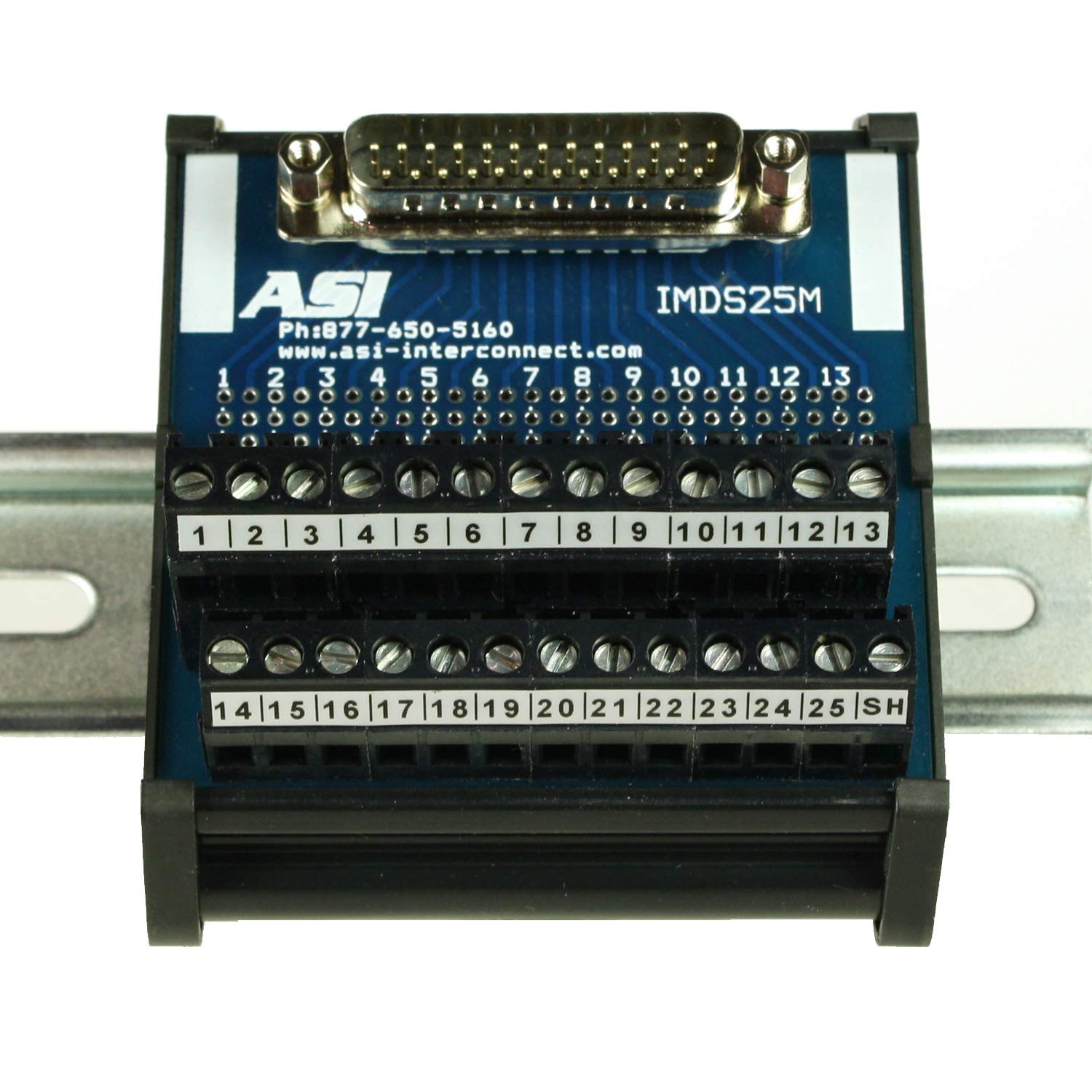

The IMDS25M is a compact DIN rail mounted interface module that provides a wiring transition from an industry standard 25 position male d-subminiature connector to easy to wire screw clamp terminal blocks. Each circuit on the printed circuit board of the interface module has 6 component holes for optional mounting of resistors, capacitor, MOV's or other components. The connector on the interface module is equipped with screw lock inserts so that the cable can be securely fastened to the module. Each interface module comes with a white space on the printed circuit board for customer labeling. The screw clamp terminal blocks allow for quick, easy and reliable connections to a wide wire range, 26 to 12AWG.

• Screw locks to secure connector to module
• Component holes in each circuit for customer friendly modifications
• Clearly marked terminal blocks to insure correct wiring
• White space for customer labeling of module
• Wide range of connector versions now available
